Product Description
|

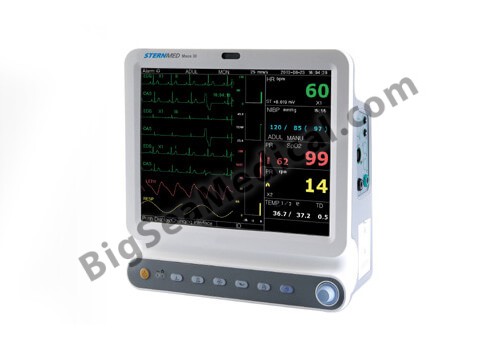

Technical Specification MACS 30 |
Sternmed Patient Monitor |
|||
|
ECG |
|
|||
|
ECG Amplifier Bandwidth |
Monitoring mode:O.5-40Hz Diagnosis mocIe:O.05_75Hz |
|||
|
CMRR |
>80dB |
|||
|
Heart Rate |
Range |
20-250bpm |
||
|
Accuracy |
+2bpm |
|||
|
ECG Gain |
1/2 |
5mm/mV+5% |
||
|
1 |
10mm/mV+5% |
|||
|
2 |
20mm/mV+5% |
|||
|
Auto |
Auto gain control |
|||
|
Load Selection |
GND; Standard I,II,III; aVR, aVL, aVF, chest V1-V8 |
|||
|
ECG Sweeping Speed |
12.5mm/s, 25mm/s, 50mm/s |
|||
|
Alarm Setting |
Customized upper & lower limits & auto saved |
|||
|
Spo2 |
|
|||
|
Display |
SpO2 value & waveform pulse rate & histogram |
|||
|
Resolution of SpO2 |
+1% |
|||
|
Accuracy of SpO2 |
+2%(75-99%) |
|||
|
+3%(50-75%) |
||||
|
Measurement Range of Pulse Rate |
30-240 bpm |
|||
|
Accuracy of Pulse Rate |
+2bpm |
|||
|
Alarm Setting |
Customized upper & lower limits & auto saved |
|||
|
|
||||
|
Technical Specification MACS 30 |
Sternmed Patient Monitor |
|||
|
RESP |
|
|||
|
Measurement Method |
Thoracic Impedance |
|||
|
Measurement Range |
0-100 bpm |
|||
|
Accuracy |
±5% |
|||
|
Alarm Setting |
Customized upper & lower limits & auto saved |
|||
|
TEMP |
|
|||
|
Range |
28.0-45.0°C |
|||
|
Accuracy |
+0.2°C |
|||
|
Alarm |
Customized upper & lower limits & auto saved |
|||
|
NIBP |
|
|||
|
Measurement Method |
Intelligent Oscillometric method |
|||
|
Parameters |
Manual, automatic & STAT (5minutes) |
|||
|
Working Modes |
mmHg/kPa selectable |
|||
|
Unit Display |
0-300 mmHg |
|||
|
Cuff Pressure Range
|
Adult (standard) Child/neonate (optional) |
|||
|
Automatic Measuring Time |
1-240 minutes |
|||
|
Inflation Time |
<10s (typical adult cuff) |
|||
|
Deflation Time |
<2s (typical adult cuff) |
|||
|
Monitoring Range |
Adult/Child |
Systolic 25-265mmHg |
||
|
Diastolic 12-220mmHg |
||||
|
Mean 18-245mmHg |
||||
|
Neonate |
Systolic 25-135mmHg |
|||
|
Diastolic 12-110mmHg |
||||
|
Mean 18-120mmHg |
||||
|
Alarm Setting |
Customized upper & lower limits & auto saved |
|||
|
General Specifications |
|
|||
|
Standard Configuration |
ECG, HR, RESP, NIBP, SpO2, PR, TEMP, Battery |
|||
|
Power |
100-250VAC, 50/60Hz |
|||
|
Power Consumption |
< 80VA |
|||
|
Display |
TFT Color LCD (15”) |
|||
|
Alarm |
Audible & Visual |
|||
|
Networking |
RJ45 |
|||
|
Battery |
Rechargeable lead-acid battery |
|||
|
Service Life |
> 2hours |
|||
|
Safety Standard |
EN IEC60601-1 (GB9706.1) |
|||
|
Optional Module |
Built-In thermal printer |
|||
|
1-channel IBP |
||||
|
2-channel IBP |
||||
|
Slide stream CO2 |
||||
|
Main stream CO2 |
||||
|
|
|
|
|
|
